40 Degree Incline Swing Check Valve With AISI B16.1 Flange

Automatic Rubber Flapper Swing Flex Check Valve With Nylon Reinforcement Disc

Description:

The rubber flapper swing check valve is designed to prevent reverse flow automatically. During system flow conditions, the movement of the fluid forces the disc to the open position allowing 100% un-restricted flow area through the valve. Under reverse flow conditions, the disc automatically returns to the closed position to prevent the flow reversing.

Features:

· A 40 degree angle tilted seat design helps close very soon for shorter stroke and minimize the water hammer and slamming for lower stroke and flap above water flow.

· The rubber disc is totally encapsulated in EPDM rubber for superior sealing and corrosion resistance.

· Simple design, top entry cover allows for access for cleaning, replacement and maintenance easily.

· Nylon fabric is inserted into the disc for stengthening the disc from cracking and breaking during operations.

· The life cycle of RDCV is over 50000 times

· The unrestricted full flow area combined with smooth streamline contouring allows for passage of large
· Fusion Bonded Epoxy (FBE) is provided on the interior and exterior of the valve
· Meets BS EN 1074-3 and BS EN 558 F/F dimensions.

General Applications:

For general water supply, fire fighting,HVAC/ cooling & sewage system.

Material:

40 Degree Incline Swing Check Valve

AISI B16.1 Flange Swing Check Valve

AISI B16.1 Flange Swing Flex Check Valve

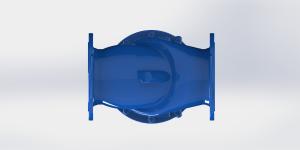

40 Degree Incline Swing Check Valve With AISI B16.1 Flange Images
